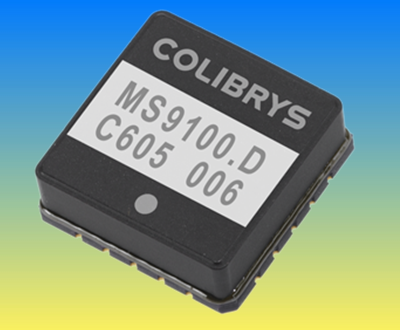

MS9100.D高可靠性加速度計芯片
發布于：2020-09-27 15:55:55
品牌名稱：Safran
重要參數：
高性能MEMS電容加速度計
適用于陸地、海洋、航空精密慣性系統
2-200g 動態范圍
可適用于惡劣高振動環境
LCC20陶瓷封裝
| Performance | MS9002 | MS9005 | MS9010 | MS9030 | MS9050 | MS9100 | MS9200 | Units |
| Measurement range | ± 2 | ± 5 | ± 10 | ± 30 | ± 50 | ± 100 | ± 200 | g |
| One year bias stability @ 1000g | 0.3 (< 1.5) | 0.75 (< 3.75) | 1.5 (< 7.5) | 4.5 (< 22.5) | 7.5 (< 37.5) | 15 (< 75) | 30 (< 150) | mg typ. (max.) |
| Bias temp. coefficient | < 0.1 | < 0.25 | < 0.5 | < 1.5 | < 2.5 | < 5 | < 10 | mg/°C typ. |
| Scale factor sensitivity (K1) | 1000 ± 8 | 400 ± 4 | 200 ± 2 | 66.6 ± 1 | 40 ± 1 | 20 ± 1 | 10 ± 1 | mV/g |
| One year scale factor stability & [2] | 300 (< 1000) | 300 (< 1000) | 300 (< 1000) | 300 (< 1000) | 300 (< 1000) | 300 (< 1000) | 300 (< 1000) | ppm typ. (max.) |
| Scale factor temp. coefficient | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ppm / °C typ. |
| Resolution / Threshold (@ 1Hz) | < 0.1 | < 0.25 | < 0.6 | < 1.7 | < 2.8 | < 5.5 | < 11 | mg max. |
| Non linearity | < 0.8 | < 0.8 | < 0.9 | < 0.9 | < 0.9 | < 1 | < 1 [5] | % of FS max. |
| Bandwidth | 0 to ≥ 100 | 0 to ≥ 100 | 0 to ≥ 100 | 0 to ≥ 100 | 0 to ≥ 100 | 0 to ≥ 100 | 0 to ≥ 100 | Hz |
| Noise spectral density in band | 18 | 45 | 90 | 270 | 450 | 900 | 1800 | μg/√Hz typ. |
| Operating Temperature Range | -55° to +125° | -55° to +125° | -55° to +125° | -55° to +125° | -55° to +125° | -55° to +125° | -55° to +125° | °C |
