SS 104 A130-130短插頭連接器Fischer

發布時間：2024-11-22 09:20:10     瀏覽：26

　　SS 104 A130-130是Fischer Connectors公司生產的一款高性能連接器，屬于其Core系列中的104尺寸產品。這款連接器設計用于低電壓信號或電源的傳輸，具有14個接觸點，采用焊接方式進行端接，推拉式鎖定系統便于連接和斷開，且為線纜安裝類型，適合需要頻繁插拔的場合。外殼由黃銅制成，表面處理為灰色啞光，絕緣材料為高性能的PEEK，確保了產品的耐用性和可靠性。

SS 104 A130-130短插頭連接器Fischer

　　產品名稱: SS 104 A130-130

　　系列: SS - SHORT PLUG(短插針)

　　接觸點數量: 14個

　　連接器類型: 插頭(Plug)

　　端接類型: 焊接(Solder)

　　鎖定系統: 推拉式(Push-pull)

　　安裝類型: 線纜安裝(Cable Mounted)

　　信號/電源: 低電壓(Low Voltage)

　　外殼材料: 黃銅(Brass)

　　外殼顏色: 灰色啞光(Grey Mat)

　　絕緣材料: PEEK(聚醚醚酮)

　　相關型號參數：

ConnectorContactsTermination typeLocking systemSignal / PowerSealing level
SS 104 A130-13014Solder  Push-pull
   IP50
143227   Low Voltage
SS 104 A131-13012Solder  Push-pull   Low Voltage   IP50
143222
SS 1031 A015-13015Solder  Push-pull   LowVoltage   IP50
142813
SS 103 A015-600-C424881Solder  Push-pull   Triax   IP50
142499
SS 103 A058-1508Crimp  Push-pull   LowVoltage   IP50

138771
AL1731-SS-105-A102CP11-1327Crimp  Push-pull   Low Voltage   IP50
136564
AL1731-SS-104-A040CP11-133Crimp  Push-pull   Low Voltage   IP50
135658
SS 105 Z067-1308Solder  Push-pull   Low Voltage   IP50
135558
SS 103 Z058-1508Crimp  Push-pul   Low Voltage   IP50
135260
AL1731-SS-103-A057CP11-137Crimp  Push-pull   LowVoltage   IP50
138768
SS 103 Z053-1304Solder  Push-pull   Low Voltage   IP50
130546
AL1731-SS-103-A062SR11-1312Solder  Push-pul   Low Voltage   IP50
130163
SS 105 Z062-13010Solder  Push-pull   Low Voltage   IP50
129212
SS 105 z052-1303Solder  Push-pull   LowVoltage   IP50
129124
SS 104 Z040-803Solder  Push-pull   LowVoltage   IP50
127519
SS 104 A104-13012Solder  Push-pul   Low Voltage   IP50
142766
SS 102 Z052-1303Solder  Push-pull   Low Voltage   IP50
108456
AL1731-SS-105-A053SR11-134Solder  Push-pull   Low Voltage   IP50
124174
SS 105 A102-15027Crimp  Push-pull   Low Voltage   IP50
108803
SS 102 Z051-1302Solder  Push-pull   LowVoltage   IP50
108092
SS 104 Z037-1304Solder  Push-pul   Low Voltage   IP50
120223
SS 104 A051-1302Solder  Push-pul   Low Voltage   IP50
112949
SS 105 Z054-1307Solder  Push-pull   Low Voltage   IP50
128466
SS 103 Z057-1307Solder  Push-pull   Low Voltage   IP50
107971
SS 102 Z056-1507Crimp  Push-pull   LowVoltage   IP50
120672
SS 103 A057-1307Solder  Push-pull   Low Voltage   IP50
107732
SS 1031 A105-13014Solder  Push-pul   Low Voltage   IP50
143217
 SS 104 Z066-1308SolderPush-pullLow VoltageIP50
104014
 SS 103 Z058-1308SolderPush-pulLow VoltageIP50
107957
 SS 104 Z092-13019SolderPush-pullLow VoltageIP50
118916
 SS 104 Z087-804SolderPush-pulLowVoltageIP50
104009
 SS 104 A124-15027CrimpPush-pulLow VoltageIP50
108863
 SS 104 Z053-1305SolderPush-pullLow VoltageIP50
104006
 SS 103 Z052-1303SolderPush-pulLow VoltageIP50
125924
 SS 105 A069-13012SolderPush-pulLow VoltageIP50
121013
 SS 103 A058-1308SolderPush-pullLow VoltageIP50
107959
 SS 1031Z010-15010CrimpPush-pulLowVoltageIP50
102527
 SS 104 A087-804SolderPush-pullLow VoltageIP50
103635
 SS 1031 A010-13010SolderPush-pullLow VoltageIP50
102368
 SS 1031Z010-13010SolderPush-pulLow VoltageIP50
102537
 SS 105 A104-13013SolderPush-pullLow VoltageIP50
131124
 AL1731-SS-1031-A019SR11-1319SolderPush-pullLowVoltageIP50
127319
 SS 1031 A010-15010CrimpPush-pulLowVoltageIP50
102442
 SS 1031 A019-15019CrimpPush-pullLow VoltageIP50
102426
 SS 1031Z019-13019SolderPush-pulLow VoltageIP50
107763
 AL1731-SS-104-A092SR11-1419SolderPush-pullLow VoltageIP50
133960
 SS 104 A054-1307SolderPush-pullLowVoltageIP50
119981
 SS 102 A053-1504CrimpPush-pulLowVoltageIP50
100914
 SS 102 A051-1302SolderPush-pulLow VoltageIP50
114106
 SS 102 Z054-1305SolderPush-pullLow VoltageIP50
101220
 SS 105 A038-15018CrimpPush-pulLow VoltageIP50
114024
 SS 103 Z056-1506CrimpPush-pullLow VoltageIP50
102165
 SS 105 A067-1308SolderPush-pullLow VoltageIP50
106528
 SS 104 Z056-13011SolderPush-pulLowVoltageIP50
106483
 SS 1031 A012-13012SolderPush-pullLow VoltageIP50
102407
 SS 102 A056-1507CrimpPush-pulLow VoltageIP50
100982
 AL1731-SS-103-Z051SR11-142SolderPush-pulLow VoltageIP50
133958
 SS 103 A062-13012SolderPush-pullLowVoltageIP50
101865
 SS 104 A037-1504CrimpPush-pulLowVoltageIP50
135261
 SS 103 A053-1304SolderPush-pullLow VoltageIP50
115152
 SS 102 A054-1305SolderPush-pullLow VoltageIP50
100897
 SS 105 Z069-13012SolderPush-pulLow VoltageIP50
132302
 SS 104 Z055-1309SolderPush-pullLow VoltageIP50
114770
 SS 105 A062-13010SolderPush-pullLow VoltageIP50
128346
 SS 103 A051-1302SolderPush-pulLow VoltageIP50
101877
 SS 1031 A012-15012              Crimp  Push-pullLow VoltageIP50
102463
 SS 105 A093-8024Solder  Push-pullLow VoltageIP50
123972
 SS 102 A056-1307Solder  Push-pullLow VoltageIP50
100888
 SS 105 Z093-8024Solder  Push-pullLow VoltageIP50
119636
 AL1731-SS-103-A054CP11-135CrimpPush-pullLow VoltageIP50
131226
 SS 102 A053-1304Solder  Push-pullLow VoltageIP50
100901
 SS 1031 A019-13019Solder  Push-pullLow VoltageIP50
102423
 SS 104 A056-13011Solder  Push-pullLow VoltageIP50
103563
 SS 104 A040-803Solder  Push-pullLow VoltageIP50
125055
 SS 103 A054-1305Solder  Push-pullLow VoltageIP50
101878
 SS 103 Z054-1305Solder  Push-pullLow VoltageIP50
102176
 SS 104 A092-13019Solder  Push-pullLow VoltageIP50
107949
 AL1731-SS-102-Z051SR11-132Solder  Push-pullLow VoltageIP50
125995
 SS 102 Z053-1304Solder  Push-pullLow VoltageIP50
101230
 SS 105 Z102-15027CrimpPush-pulLow VoltageIP50
137515
 SS 104 Z053-1505Crimp  Push-pullLow VoltageIP50
108520
 AL1731-SS-102-A054SR11-135Solder  Push-pullLow VoltageIP50
121134
 SS 103 A052-1303Solder  Push-pullLow VoltageIP50
101907
 SS 105 A102-13027Solder  Push-pullLow VoltageIP50
113051
 SS 102 Z056-1307Solder  Push-pullLow VoltageIP50
113078
 AL1731-SS-102-A056SR11-137Solder  Push-pullLow VoltageIP50
113189
 SS 105 Z110-13016Solder  Push-pullLow VoltageIP50
129308
 SS 103 Z056-1306Solder  Push-pullLow VoltageIP50
113991
 SS 103 A062-16012Crimp  Push-pullLow VoltageIP50
113388
 SS 104 A086-13016Solder  Push-pullLow VoltageIP50
113409
 SS 104 A055-1309Solder  Push-pullLow VoltageIP50
114771
 SS 102 A066-1302Solder  Push-pullLow VoltageIP50
140901
 SS 1031Z012-13012Solder  Push-pullLow VoltageIP50
113992
 SS 102 Z054-1505Crimp  Push-pullLow VoltageIP50
114107
 AL1231-SS-103-A062CP11-1312Crimp  Push-pullLow VoltageIP50
114145
 SS 1031Z019-15019Crimp  Push-pullLow VoltageIP50
114240
 SS 105 Z058-13015Solder  Push-pullLow VoltageIP50
127137
 AL1731-SS-102-A052SR11-133Solder  Push-pullLow VoltageIP50
114200
 SS 103 Z051-1302Solder  Push-pullLow VoltageIP50
116260
 SS 102 A059-1309Solder  Push-pullLow VoltageIP50
114037
 SS 102 A054-1505Crimp  Push-pullLow VoltageIP50
125382
 SS 104 A066-1308Solder  Push-pullLow VoltageIP50
103648
 SS 104 Z086-13016Solder  Push-pullLow VoltageIP50
116384
 SS 104 A053-1305SolderPush-pullLow VoltageIP50
116669
SS 105 A058-13015  Solder  Push-pull  Low Voltage  IP50
116670
SS 1031 A029-13012  Solder  Push-pull  Low Voltage  IP50
142781
SS 102 Z053-1504  Crimp  Push-pul  Low Voltage  IP50
101207
SS 104 A037-1304  Solder  Push-pul  Low Voltage  IP50
116725
SS 104 A065-1306  Solder  Push-pul  Low Voltage  IP50
116964
SS 104 Z065-1306  Solder  Push-pull  Low Voltage  IP50
116965
AL1731-SS-103-A053SR11-144  Solder  Push-pul  Low Voltage  IP50
121043
SS 105 A087-1302  Solder  Push-pull  Low Voltage  IP50
116999
SS 105 Z087-1302  Solder  Push-pul  Low Voltage  IP50
117087
SS 104 Z051-1302  Solder  Push-pul  Low Voltage  IP50
134242
SS 102 Z059-1309  Solder  Push-pull  Low Voltage  IP50
118924
AL1731-SS-104-A066CP11-138  Crimp  Push-pul  Low Voltage  IP50
136577
SS 105 Z102-13027  Solder  Push-pul  Low Voltage  IP50
119798
SS 105 Z053-1304  Solder  Push-pul  Low Voltage  IP50
120071
AL1731-SS-1031-A010SR11-1310  Solder  Push-pull  Low Voltage  IP50
126511
AL1731-SS-102-A051SR11-132  Solder  Push-pul  Low Voltage  IP50
121132
SS 102 A051-1502  Crimp  Push-pul  Low Voltage  IP50
106286
SS 105 A053-1304  Solder  Push-pul  Low Voltage  IP50
120815
SS 103 A056-1306  Solder  Push-pull  Low Voltage  IP50
101870
SS 1031 Z012-15012  Crimp  Push-pul  Low Voltage  IP50
123957
SS 102 A052-1303  Solder  Push-pull  Low Voltage  IP50
100890
AL1731-SS-105-A093SR11-1324  Solder  Push-pul  Low Voltage  IP50
124175
AL1731-SS-1031-A012SR11-1312  Solder  Push-pull  Low Voltage  IP50
126512
SS 105 A110-13016  Solder  Push-pull  Low Voltage  IP50
105020
SS 105 A038-13018  Solder  Push-pul  LowVoltage  IP50
125917
SS 105 A124-1308  Solder  Push-pul  Low Voltage  IP50
125139
SS 105 A062-15010  Crimp  Push-pul  Low Voltage  IP50
126184


推薦資訊

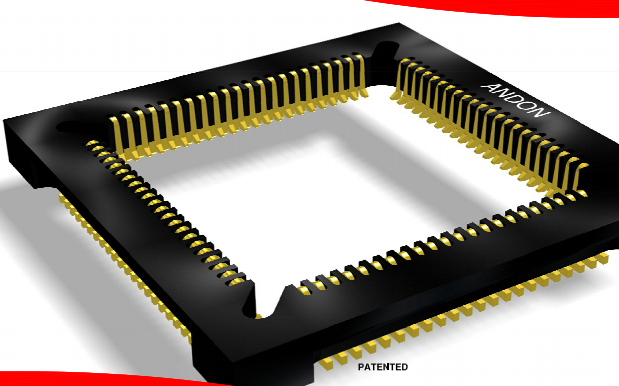

  • Luxima Technology LLC高可靠性圖像傳感器插座ANDON
    Luxima Technology LLC高可靠性圖像傳感器插座ANDON 2022-11-02 17:13:02

    ANDON?專利滾珠插座端子選擇提供了最準確的焊接工藝、更穩固的連接和更加好的電氣連接接地，尤其是在沖擊和震動下。更加好的是，Luxima圖像傳感器插座能夠讓客戶減少高昂的返工和刮蹭，尤其是在共面性方面PCBS中。

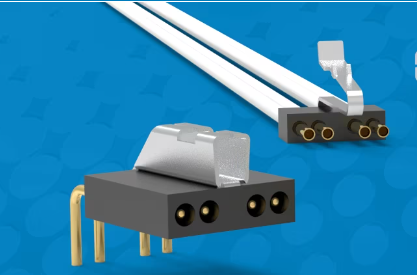

  • Airstrip系列微型條形板安裝連接器AirBorn
