El Ochito? 八軸觸點Glenair

發布時間：2023-02-13 16:44:50 瀏覽：809

Glenair高速度，環境惡劣El Ochito?八軸觸點減少規格和重量。El Ochito?觸點主要用于飛機航電系統、武器裝備、通訊衛星、雷達天線、通訊設備等航空航天/國防科技設備40G以太網，高速率USB與其它數千兆數據鏈路協議(包括(包括)HDMI、Display Port和SATA）優化方案。適用的離散觸點和跳線模塊非常容易集成Glenair在航空航天圓形和矩形連接器中。

40GbE、Super Speed USB和多千兆屏蔽電纜對

壓接屏弊端接和管螺紋（可檢修）屏弊端觸點類型

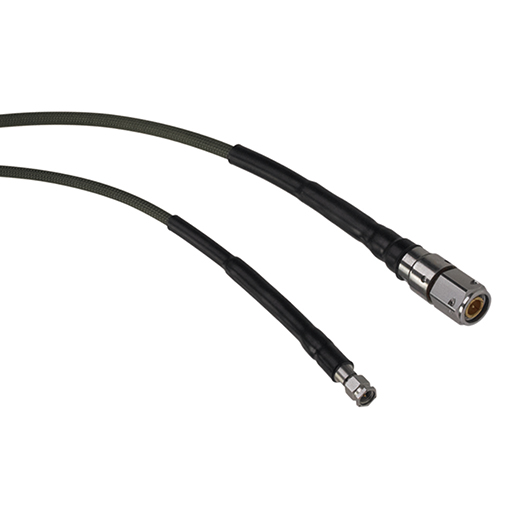

交付單端和點對點跳線

卡入式，側面釋放

環境密封性和屏弊

航空航天級性能

El Ochito?觸點主要用于極端情況下的軍航數據網絡。采用傳統為核心quadrax與解決方案相比較，El Ochito?觸點能夠降低高達50%總重量，提高數據傳輸速率20倍。這些觸點有八個壓接信號管腳，設置在生產加工鍍金外觸點中。El Ochito?八軸觸點提供三種版本：40GbE以太網的El Ochito?White、適用于高速率USB的El Ochito?Blue和適用于千兆100Ω協議(如HDMI和SATA）的El Ochito?Red。

El Ochito?觸點和標準規范ARINC600、EPXB和MIL-DTL-38999連接器兼容。也針對觸點系列816系列、792系列微壓接矩形，23系列SuperNine?、微型806系列Mil-Aero和nm微圓形SuperFly Datalink優化方案。

Glenair連接器是全球知名的高端品牌，廣泛應用于航天航空、軍用、艦載、精密制造等場合。深圳市立維創展科技有限公司，授權代理銷售Glenair產品，并提供技術支持。歡迎咨詢。

詳情了解Glenair請點擊：/brand/77.html

Series 233 SuperNine?

Plug/Receptacle Crimp Contact.......233-217

Plug/Receptacle Crimp Contact..... 233-224

Receptacles, Wall Mount PC Tail .... 233-218

Receptacle, Wall Mount

Dual Flange PC Tail............ 233-225

Series 882 SuperFly? DataLink

Push-Pull Plug............. 882-001

Push-Pull Receptacle........... 882-002

Push-Pull Receptacle, PC Tail........... 882-005

Plug, Threaded Coupling.......... 882-003

Receptacle, Threaded Coupling..... 882-006

Recep, Threaded, PC Tail .......... 882-004

Series 816 Mil-Aero

Plug, Inline........... 816-001

Receptacle, Inline. ............ 816-002

Receptacle, Front Panel Mount......... 816-003

Receptacle, Rear Panel Mount........... 816-004

Plug, Rear Panel Mount,

PC Tails....... 816-005

Receptacle, Jam-Nut Mount, with PC Tails......... 816-006

Plug, Lanyard Release......... 816-007

Receptacle, Lanyard Release......... 816-008

Series 806 Mil-Aero

Plug, Free-Hanging............... 806-012

Receptacle, Wall Mount............. 806-013

Receptacle, Free-Hanging.............. 806-019

Receptacle, Jam-Nut Mount.......... 806-020

Receptacle, Wall Mount............. 806-022

Receptacle, Jam-Nut Mount, with PC Tails............ 806-039

Receptacle, Wall Mount with PC Tails............... 806-040

Series 792 Ultraminiature Rectangular

Plugs, Free-Hanging........................... 792-001

Receptacles, Free-Hanging.............. 792-002

Plugs, Panel Mount........................ 792-003

Receptacles, Panel Mount................ 792-004

Plugs, Straight PC Tails....................... 792-005

Receptacles, Straight PC Tails.......... 792-006

Plug, Straight PC Tails, Panel Mt.. ... 792-007

Recep, Straight PC Tails, Panel Mt.. 792-008

Plugs, 90° PC Tails................................ 792-009

Receptacles, 90° PC Tails................... 792-010

Plugs, 90° PC Tails, Panel Mt............. 792-011

Recep, 90° PC Tails, Panel Mt........... 792-012

Series 28 HiPer-D?

Plugs, Free-Hanging......................... 280-082

Receptacles, Free-Hanging.............. 280-083

Plugs, Straight PC Tails....................... 280-090

Receptacles, Straight PC Tails.......... 280-091
