Q-Tech QPL晶體振蕩器
發布時間:2021-06-10 17:03:51 瀏覽:876
某些電子元器件需要高度穩定性的交流信號,而LC振蕩器的穩定性差,工作頻率漂移容易(即形成的交流信號的工作頻率很容易變化)。在振蕩器中,一種獨特的元器件石英晶體能夠 形成高度穩定性的信號。這類選用石英晶體的晶體振蕩器稱為晶體振蕩器。

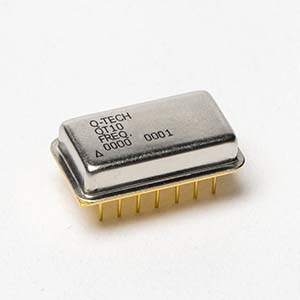

Q-Tech QPL晶體振蕩器是體現晶體或振蕩器能否符合非常性能卓越規定要求的檢測標準之一。將其運用于國防裝備和軍事產品的零部件,以符合這一標準是必不可少的。
Q-Tech是首家出現在MIL-O-55310(現為MIL-PRF-55310)的合格產品名單上的公司。現階段,Q-Tech獲得了28多個MIL-PRF-55310斜件編號的認證,提供了各種各樣封裝形式、電流電壓和邏輯類型及其溫度穩定性的組合,符合了軍事和空間的所有規定要求。
R-深圳市立維創展科技有限公司授權代理銷售Q-TECH產品,備件現貨,歡迎與業界同行合作。
詳情了解Q-Tech請點擊: http : //899job.com/public/brand/60.html
或聯系我們的銷售工程師: 0755- 83642657 QQ : 2295048674
數據表 | 軍用零件號 | 邏輯類型 | 電源電壓 | 頻率范圍 |
MIL-PRF-55310/08 | M55310/08J w/ AMENDMENT 1 | TTL | 5Vdc | 50Hz to 50MHz |
MIL-PRF-55310/09 | M55310/09J w/ AMENDMENT 1 | TTL | 5Vdc | 400kHz to 60MHz |
MIL-PRF-55310/10 | M55310/10J w/ AMENDMENT 1 | TTL | 5Vdc | 1kHz to 60MHz |
MIL-PRF-55310/11 | M55310/11G w/ AMENDMENT 1 | CMOS | 10 to 15Vdc | .05MHz to 10MHz |
MIL-PRF-55310/12 | M55310/12H w/ AMENDMENT 1 | CMOS | 10 to 15Vdc | .05MHz to 10MHz |
MIL-PRF-55310/13 | M55310/13J | CMOS | 10 to 15Vdc | 300Hz to 10MHz |
MIL-PRF-55310/14 | M55310/14H w/ AMENDMENT 1 | TTL | 5Vdc | .1Hz to 25MHz |
MIL-PRF-55310/15 | M55310/15G w/ AMENDMENT 1 | CMOS | 6.75 to15Vdc | .01Hz to 10MHz |
MIL-PRF-55310/16 | M55310/16K | TTL | 5Vdc | 375kHz to 80MHz |
MIL-PRF-55310/16 | M55310/16K | TTL | 5Vdc | .1Hz to 80MHz |
MIL-PRF-55310/17 | M55310/17F w/ AMENDMENT 1 | TTL | 5Vdc | 250kHz to 50MHz |
MIL-PRF-55310/18 | M55310/18F w/ AMENDMENT 1 | CMOS | 5 to 15Vdc | .01Hz to 15MHz |
MIL-PRF-55310/19 | M55310/19E w/ AMENDMENT 1 | TTL | 5Vdc | 1MHz to 60MHz |
MIL-PRF-55310/20 | M55310/20F | TTL | 5Vdc | 40kHz to 60MHz |
MIL-PRF-55310/21 | M55310/21H | TTL | 5Vdc | 1MHz to 60MHz |
MIL-PRF-55310/26 | M55310/26D w/ AMENDMENT 1 | HCMOS | 5Vdc | .01MHz to 65MHz |
MIL-PRF-55310/26 | M55310/26D w/ AMENDMENT 1 | HCMOS | 5Vdc | 375kHz to 65MHz |
MIL-PRF-55310/26 | M55310/26D w/ AMENDMENT 1 | HCMOS | 5Vdc | .01MHz to 65MHz |
MIL-PRF-55310/26 | M55310/26D w/ AMENDMENT 1 | HCMOS | 5Vdc | 375kHz to 65MHz |
MIL-PRF-55310/27 | M55310/27E | HCMOS | 5Vdc | 1MHz to 85MHz |
MIL-PRF-55310/28 | M55310/28D | TTL | 5Vdc | 1MHz to 85MHz |
MIL-PRF-55310/29 | M55310/29C | HCMOS (Tristate) | 5Vdc | .2MHz to 85MHz |
MIL-PRF-55310/30 | M55310/30E | CMOS | 3.3Vdc | 450kHz to 100MHz |
MIL-PRF-55310/33 | M55310/33D | CMOS | 5Vdc | 500kHz to 85MHz |
MIL-PRF-55310/34 | M55310/34D | CMOS | 3.3Vdc | 500kHz to 150MHz |
MIL-PRF-55310/35 | M55310/35C | CMOS | 2.5Vdc | 1MHz to 133MHz |
MIL-PRF-55310/36 | M55310/36C | CMOS | 1.8Vdc | 1MHz to 100MHz |
MIL-PRF-55310/37 | M55310/37C | CMOS | 5Vdc | 500kHz to 85MHz |
MIL-PRF-55310/38 | M55310/38C | CMOS | 3.3Vdc | 500kHz to 150MHz |
MIL-PRF-55310/39 | M55310/39C | CMOS | 2.5Vdc | 1MHz to 133MHz |
MIL-PRF-55310/40 | M55310/40C | CMOS | 1.8Vdc | 1MHz to 100MHz |
