MTI Instruments光纖Fotonic插件模塊
發布時間:2021-05-20 17:20:54 瀏覽:910

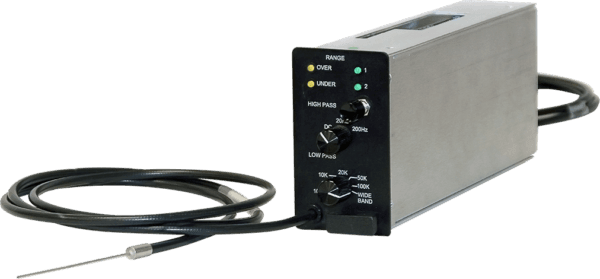

MTIInstruments光纖Fotonic插件模塊適用于精確測量動態性邊緣位置、位移和振動,工作頻率高達500khz。它具備適用于納米技術運動和振動的敏銳光纖精確測量傳感器.
MTIInstruments光纖Fotonic插件模塊可在高達500kHz的工作頻率下精確測量動態性邊緣位置、位移和振動。獨具特色的光纖探頭設計能夠滿足不同的目標反射率或樣式,特別適合各種各樣應用領域,如超聲波喇叭振動或壓電材料研究.
伴隨著探頭到目標的距離增大,接收光纖將按比例獲取越來越多的光。結果是一個非常敏感的線性輸出響應。探針間隙的不斷增大將成比例地降低接收的光量,因此產生敏銳的線性輸出響應和較大的檢測范圍和隔離距離。
深圳市立維創展科技有限公司,優勢直接渠道提供MTI Instruments訂貨服務,歡迎咨詢。
詳情了解MTI Instruments 請點擊:/brand/70.html
或聯系我們的銷售工程師:0755-83642657 QQ: 2295048674
P/N | Model | Measurement Range | Stand-Off | Resolution | Type | Frequency Response |
8500-1011 | Plug-in Module: MTI-2020R | 0.102mm (4mils) – 0.305mm (12mils) | 0.127mm (5mils) – 0.508mm (20mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 120kHz |
8500-1012 | Plug-in Module: MTI-2032R | 0.127mm (5mils) – 1.016mm (40mils) | 0.127mm (5mils) – 0.889mm (35mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 120kHz |
8500-1013 | Plug-in Module: MTI-2047R | 0.127mm (5mils) – 1.016mm (40mils) | 0.127mm (5mils) – 1.118mm (44mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 130kHz |
8500-1014 | Plug-in Module: MTI-2062R | 0.152mm (6mils) – 1.524mm (60mils) | 0.127mm (5mils) – 1.778mm (70mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 150kHz |
8500-1015 | Plug-in Module: MTI-2062H | 0.762mm (30mils) – 1.905mm (75mils) | 0.762mm (30mils) – 3.81mm (150mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 150kHz |
8500-1016 | Plug-in Module: MTI-2125R | 0.152mm (6mils) – 3.556mm (140mils) | 0.178mm (7mils) – 3.048mm (120mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 190 kHz |
8500-1017 | Plug-in Module: MTI-2125H | 1.778mm (70mils) – 4.445mm (175mils) | 1.27mm (50mils) – 7.62mm (300mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 150kHz |
8500-1018 | Plug-in Module: MTI-2125CTI | 0.508mm (20mils) – 3.556mm (140mils) | 0.762mm (30mils) – 5.588mm (220mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 150kHz |
8500-1019 | Plug-in Module: MTI-2032RX High Resolution | 0.036mm (1.4mils) – 4.445mm (175mils) | 0.038mm (1.5mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 100kHz |
8000-4237 | Plug-in Module: MTI-RC200 | 2.54mm (100mils) | 2.54mm (100mils) | 0.01μm (1μin) – 0.1μm (1μin) | Fiber Optic Module | 100kHz |
8500-1020 | Plug-in Module: MTI-2047E | 0.127mm (5mils) – 0.051mm (2mils) | Fiber Optic Module | 100kHz | ||
8500-1021 | Plug-in Module: MTI-2062E | 0.191mm (7.5mils) – 0.061mm (2.4mils) | Fiber Optic Module | 100kHz |
